ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

Name: ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified
Brand: WINLEY
Price: 1000 USD

Buy cheap ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified product

Brand Name : WINLEY

Model Number : D-75/34.5

Certification : UL,cUL,CE,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : $1000-$10000

Payment Terms : T/T

Supply Ability : 5000set/month

Delivery Time : 30days

Packaging Details : Plywood case

Transformer Type : Distribution Transformer, Conventional Type

capacity : 75KVA

Primary Voltage : 6900V

Primary BIL : 75 kV

Secondary Voltage : 460V

Cooling Class : ONAN; Self-Cooled

Efficiency : 99.00%

Efficiency Standard(s) : Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Contact Now

ANSI/IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL/cUL Certified

Overview

Winley Electric’s 75 kVA single‑phase liquid‑filled pad‑mounted distribution transformer is engineered for reliable outdoor distribution service for residential, commercial and light industrial applications. Designed to meet DOE 2016 efficiency requirements and applicable ANSI/IEEE standards, this conventional ONAN unit delivers high efficiency, robust construction and low maintenance for grid-tied and stand‑alone distribution needs.

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

Main data

Transformer Type	Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pad Mounted
Phase	Single Phase
Capacity	75 KVA
Primary Voltage	6900V
Primary BIL	75 kV
Secondary Voltage	460V
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	51 dBA
Efficiency	99.00%

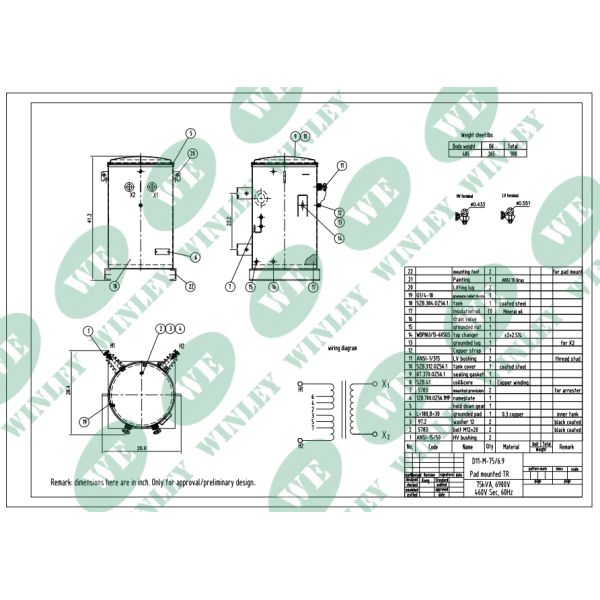

Technical drawings

Feature

Housing Material: Coated steel with corrosion‑resistant cover band and removable top cover
Finish Color: ANSI 70 Gray with weatherproof, UV‑resistant epoxy coating and undercoat
Lifting Lugs: Included (visible on exterior)
Mounting: Pad‑mount base with mounting provisions
Hardware: Stainless steel fasteners and external fittings
Nameplate & Markings: External nameplate and oil level/inspection markings (internal oil level line indicated at service points)
External Bushings: Porcelain high‑voltage side‑mounted bushing and live bushing lugs visible on tank side
Access Features: Removable top cover/lid for filling and maintenance;
Protective Features: Corrosion‑resistant cover band, sealed weatherproof joints, and grounding lug on tank exterior
Sound: Low audible profile (~51 dBA), apparent at typical operating distance

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

why choose us

Winley Electric is a professional manufacturer of pole transformers, with capacities ranging from 10 kVA to 333 kVA. Our products meet ANSI/IEEE, CSA, IEC, and other standards and have obtained UL/cUL certifications. With decades of professional experience, we provide safe, stable, and efficient designs, along with comprehensive technical support, to offer you reliable power solutions.

ANSI IEEE Standards 75KVA Single Phase Pole Mounted Transformer Oil Immersed 6900V to 460V UL cUL Certified

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE/CSA	1.0-4.5%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49
